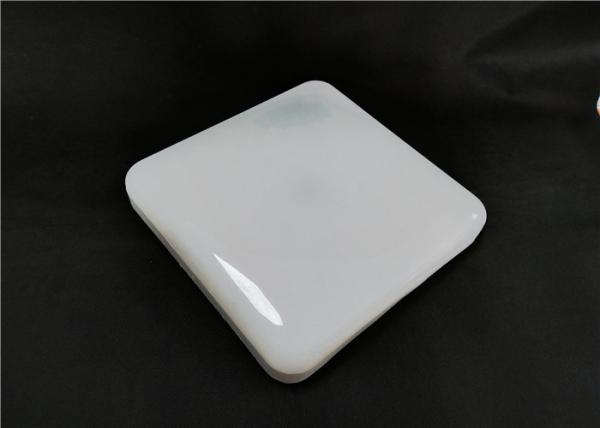

Square White 20W Surface Frameless Panel Light IP65 LED Bulkhead Ceiling Lights
IP65 Square LED Bulkheads, Exterior Amenity Bulkheads Features
With ABS base and PS opal diffuser, super slim body, this LED bulkhead offers an energy saving and cost effective solution compared to standard bulkhead luminaire, it can replace traditional ceiling light comepletely , but have advantages such as moisture resistance, mosquitos resistance It is ideal applications for corridors , foyers, parking lot, porch, patio, deck, dock or walkway, and all general circulation areas.
• IP65 Rated, Protected against Low Levels of Dust, and Splashes of Water
• High luminous efficiency more than 100lm/w.
• 30,000 hours lamp Life, 2 years warranty
• High efficiency with its 20W power saving you money on energy bills
• Comes with ABS Body and PS Diffuser
• Dimensions: 195mm *195mm x 38mm
Product Specification
| Power Consumption | 20 Watts |
| Fixture Type | Wall Mount, Ceiling Mount |
| Bulkhead Shape | Square |
| Dimmension (mm) | 195mm * 195mm * 38mm |
| Working Voltage | AC100-265V |
| Light Source | SMD 2835 |
| Metal Bracket & Screws | Included |
| Lumens | 2000lm |
| Light Efficency | >100lm/w |
| Color Temperature | 3000K 4000K 6500K 8000K |
| Work Frequency | 50/60Hz |
| LED Driver | Non Isolated |
| Power Factor | >0.5 |
| CRI | Ra>70/80 |
| Beam Angle | 120° - 140º |
| Finish Colour | White |
| Housing Materials | ABS Base , PS diffusor |
| IP Rating | IP65 |
| Working Temperature | -20℃ to +60℃ |
| Working Humidity | 10-70% RH |
| Dimmable | No |
| Warranty | 2 years |
| Approvals | IP65 CE RoHS BIS |
| Application | Indoor Lighing , Outdoor Lighting |
| PCS/CTN | 30pcs |
| CTN Size (cm) | 68*42*22cm |
Lighting Application
Ideal lighting for Outdoor Courtyard, Tunnels , Parkinig lots , the Subway Stations , Workshops , Corridors , Community , Bath Rooms , Bed Rooms , Dinning Rooms , Restaurants , Office , Kitchen , Hallway , Utility , Staircase , Garden , Countyard , Bus Station , Shed ,Car Washing Stations, porch, patio, deck, dock or walkway etc.
Warnings
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
